PyTorch 高级篇（2）：变分自编码器（Variational Auto-Encoder）

发表于 更新于 分类于
Pytorch高级S03E02：变分自编码器（Variational Auto-Encoder）。
变分自编码器
数据生成
VAE+MINIST生成手写数字

PyTorch

PyTorch 高级篇（2）：变分自编码器（Variational Auto-Encoder）

参考代码

yunjey的 pytorch tutorial系列

变分自编码器 学习资料

自编码器有这些个作用，

  1. 数据去噪（去噪编码器）
  2. 可视化降维
  3. 生成数据（与GAN各有千秋）

文献

Tutorial on Variational Autoencoders

讲解视频

【深度学习】变分自编码机 Arxiv Insights出品 双语字幕by皮艾诺小叔（非直译）

讲解文章

花式解释AutoEncoder与VAE

如何使用变分自编码器VAE生成动漫人物形象

PyTorch 实现

预处理

1
2
3
4
5
6
7
8
# 包
import os
import torch
import torch.nn as nn
import torch.nn.functional as F
import torchvision
from torchvision import transforms
from torchvision.utils import save_image
1
2
3
# 设备配置
torch.cuda.set_device(1) # 这句用来设置pytorch在哪块GPU上运行
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
1
2
3
4
5
# 如果没有文件夹就创建一个文件夹
sample_dir = 'samples'
if not os.path.exists(sample_dir):
    os.makedirs(sample_dir)

1
2
3
4
5
6
7
8
# 超参数设置
# Hyper-parameters
image_size = 784
h_dim = 400
z_dim = 20
num_epochs = 15
batch_size = 128
learning_rate = 1e-3

MINIST 数据集

1
2
3
4
5
6
7
8
9
dataset = torchvision.datasets.MNIST(root='../../../data/minist',
                                     train=True,
                                     transform=transforms.ToTensor(),
                                     download=True)

# 数据加载器
data_loader = torch.utils.data.DataLoader(dataset=dataset,
                                          batch_size=batch_size,
                                          shuffle=True)

创建VAE模型（变分自编码器（Variational Auto-Encoder））

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# VAE model
class VAE(nn.Module):
    def __init__(self, image_size=784, h_dim=400, z_dim=20):
        super(VAE, self).__init__()
        self.fc1 = nn.Linear(image_size, h_dim)
        self.fc2 = nn.Linear(h_dim, z_dim) # 均值 向量
        self.fc3 = nn.Linear(h_dim, z_dim) # 保准方差 向量
        self.fc4 = nn.Linear(z_dim, h_dim)
        self.fc5 = nn.Linear(h_dim, image_size)

    # 编码过程
    def encode(self, x):
        h = F.relu(self.fc1(x))
        return self.fc2(h), self.fc3(h)

    # 随机生成隐含向量
    def reparameterize(self, mu, log_var):
        std = torch.exp(log_var/2)
        eps = torch.randn_like(std)
        return mu + eps * std

    # 解码过程
    def decode(self, z):
        h = F.relu(self.fc4(z))
        return F.sigmoid(self.fc5(h))

    # 整个前向传播过程：编码-》解码
    def forward(self, x):
        mu, log_var = self.encode(x)
        z = self.reparameterize(mu, log_var)
        x_reconst = self.decode(z)
        return x_reconst, mu, log_var
1
2
# 实例化一个模型
model = VAE().to(device)
1
2
# 创建优化器
optimizer = torch.optim.Adam(model.parameters(), lr=learning_rate)

开始训练

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
for epoch in range(num_epochs):
    for i, (x, _) in enumerate(data_loader):
        # 获取样本，并前向传播
        x = x.to(device).view(-1, image_size)
        x_reconst, mu, log_var = model(x)

        # 计算重构损失和KL散度（KL散度用于衡量两种分布的相似程度）
        # KL散度的计算可以参考论文或者文章开头的链接
        reconst_loss = F.binary_cross_entropy(x_reconst, x, size_average=False)
        kl_div = - 0.5 * torch.sum(1 + log_var - mu.pow(2) - log_var.exp())

        # 反向传播和优化
        loss = reconst_loss + kl_div
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        if (i+1) % 100 == 0:
            print ("Epoch[{}/{}], Step [{}/{}], Reconst Loss: {:.4f}, KL Div: {:.4f}"
                   .format(epoch+1, num_epochs, i+1, len(data_loader), reconst_loss.item(), kl_div.item()))

    # 利用训练的模型进行测试
    with torch.no_grad():
        # 随机生成的图像
        z = torch.randn(batch_size, z_dim).to(device)
        out = model.decode(z).view(-1, 1, 28, 28)
        save_image(out, os.path.join(sample_dir, 'sampled-{}.png'.format(epoch+1)))

        # 重构的图像
        out, _, _ = model(x)
        x_concat = torch.cat([x.view(-1, 1, 28, 28), out.view(-1, 1, 28, 28)], dim=3)
        save_image(x_concat, os.path.join(sample_dir, 'reconst-{}.png'.format(epoch+1)))
/home/ubuntu/anaconda3/lib/python3.6/site-packages/torch/nn/functional.py:1006: UserWarning: nn.functional.sigmoid is deprecated. Use torch.sigmoid instead.
  warnings.warn("nn.functional.sigmoid is deprecated. Use torch.sigmoid instead.")
/home/ubuntu/anaconda3/lib/python3.6/site-packages/torch/nn/functional.py:52: UserWarning: size_average and reduce args will be deprecated, please use reduction='sum' instead.
  warnings.warn(warning.format(ret))


Epoch[1/15], Step [100/469], Reconst Loss: 9898.7285, KL Div: 3231.0195
Epoch[1/15], Step [200/469], Reconst Loss: 9985.5391, KL Div: 3290.1267
Epoch[1/15], Step [300/469], Reconst Loss: 9800.6211, KL Div: 3201.4980
Epoch[1/15], Step [400/469], Reconst Loss: 9444.1016, KL Div: 3259.1062
Epoch[2/15], Step [100/469], Reconst Loss: 9204.6201, KL Div: 3056.4475
Epoch[2/15], Step [200/469], Reconst Loss: 9729.0078, KL Div: 3206.0845
Epoch[2/15], Step [300/469], Reconst Loss: 9609.4307, KL Div: 3220.1729
Epoch[2/15], Step [400/469], Reconst Loss: 9514.4150, KL Div: 3206.0166
Epoch[3/15], Step [100/469], Reconst Loss: 9042.1270, KL Div: 3145.2937
Epoch[3/15], Step [200/469], Reconst Loss: 9773.1826, KL Div: 3235.4180
Epoch[3/15], Step [300/469], Reconst Loss: 9427.7207, KL Div: 3141.4922
Epoch[3/15], Step [400/469], Reconst Loss: 9658.2725, KL Div: 3235.2390
Epoch[4/15], Step [100/469], Reconst Loss: 9596.0439, KL Div: 3177.3101
Epoch[4/15], Step [200/469], Reconst Loss: 9158.8330, KL Div: 3114.7456
Epoch[4/15], Step [300/469], Reconst Loss: 9519.2754, KL Div: 3100.6924
Epoch[4/15], Step [400/469], Reconst Loss: 9318.7393, KL Div: 3098.9333
Epoch[5/15], Step [100/469], Reconst Loss: 9248.7139, KL Div: 3203.3230
Epoch[5/15], Step [200/469], Reconst Loss: 9914.3438, KL Div: 3244.7737
Epoch[5/15], Step [300/469], Reconst Loss: 9575.4922, KL Div: 3210.8545
Epoch[5/15], Step [400/469], Reconst Loss: 9519.7637, KL Div: 3243.2603

................................

Epoch[11/15], Step [400/469], Reconst Loss: 9872.5010, KL Div: 3267.5239
Epoch[12/15], Step [100/469], Reconst Loss: 9508.9053, KL Div: 3069.8406
Epoch[12/15], Step [200/469], Reconst Loss: 9340.8848, KL Div: 3093.4531
Epoch[12/15], Step [300/469], Reconst Loss: 9537.1279, KL Div: 3208.4387
Epoch[12/15], Step [400/469], Reconst Loss: 9205.0615, KL Div: 3125.3406
Epoch[13/15], Step [100/469], Reconst Loss: 9650.2803, KL Div: 3167.0171
Epoch[13/15], Step [200/469], Reconst Loss: 9609.6025, KL Div: 3179.3223
Epoch[13/15], Step [300/469], Reconst Loss: 9498.6650, KL Div: 3309.2681
Epoch[13/15], Step [400/469], Reconst Loss: 9823.6318, KL Div: 3218.4116
Epoch[14/15], Step [100/469], Reconst Loss: 9167.9990, KL Div: 3097.4619
Epoch[14/15], Step [200/469], Reconst Loss: 9712.9277, KL Div: 3222.7612
Epoch[14/15], Step [300/469], Reconst Loss: 9887.4297, KL Div: 3336.3618
Epoch[14/15], Step [400/469], Reconst Loss: 9485.8965, KL Div: 3180.0781
Epoch[15/15], Step [100/469], Reconst Loss: 9628.2295, KL Div: 3244.9995
Epoch[15/15], Step [200/469], Reconst Loss: 9556.5020, KL Div: 3147.9658
Epoch[15/15], Step [300/469], Reconst Loss: 9569.2588, KL Div: 3193.5071
Epoch[15/15], Step [400/469], Reconst Loss: 9334.9570, KL Div: 3074.2688

结果展示

1
2
3
4
#导入包
import matplotlib.pyplot as plt # plt 用于显示图片
import matplotlib.image as mpimg # mpimg 用于读取图片
import numpy as np

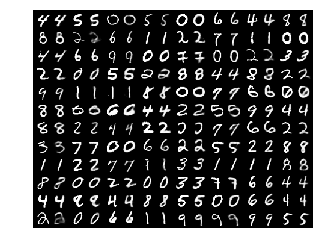

重构图

1
2
3
4
5
reconsPath = './samples/reconst-55.png'
Image = mpimg.imread(reconsPath)
plt.imshow(Image) # 显示图片
plt.axis('off') # 不显示坐标轴
plt.show()

png

随机生成图

1
2
3
4
5
genPath = './samples/sampled-107.png'
Image = mpimg.imread(genPath)
plt.imshow(Image) # 显示图片
plt.axis('off') # 不显示坐标轴
plt.show()

png
